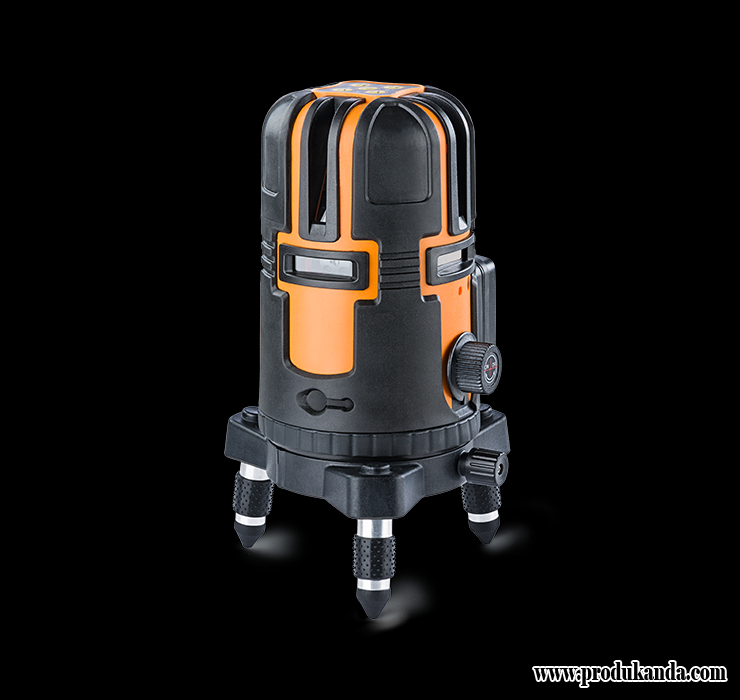

FL 69-Ultraliner HP
Revolutionize setting-out
The latest innovation in our line laser range.
8 laser dots intersecting the laserlines for increased
visibility in unfavorable light conditions:
4 laser dots at the intersections of the horizontal and vertical lines
4 laser dots intersecting the vertical lines at 45 to the horizontal
Multiple laser line and dot options with 8 laser dots, 5 laser crosses, 4 vertical lines, 360 horizontal line and a plumb down beam individually selectable
Li-Ion battery technology
Features
5 laser crosses
4 vertical lines at 90 to each other
360 horizontal line
Laser cross to the ceiling
Plumb down beam
8 laser dots
Self-levelling function can be switched off for manual use
Use with receiver FR 55 to extend the working range up to 60 m
Slow motion screw for fine adjustment
Audible and visible alarm when out of level
Integrated floor tripod
5/8 thread for use with standard tripod
Supplied with
Integrated floor tripod
Li-Ion battery pack and intelligent charger
Magnetic target
Laser glasses
Adapter for tripod connection
Battery case for optional use of alkaline batteries
Hard carrying case
tripod
Technical data
Self-levelling range 3
Accuracy 2 mm / 10 m
Working range w/o receiver 20 m*
Working range with receiver 60 m
Power supply Li-Ion
Operating time 6 - 14 h**
Dust / water protection IP 54
Laser diode 635 nm
Laser class 2
Temperature range -10 C +45 C
Weight 1.2 kg
