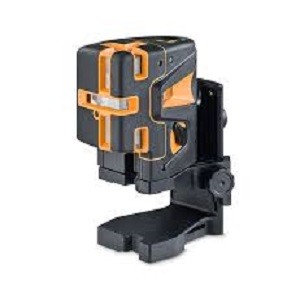

Geo5X-L360 HP
Fully Automatic Multi Line Laser Geo5X-L360 HP
Multi-functional for many indoor and outdoor construction applications
Two 360-Laser lines vertical and horizontal plus 200-Laser line vertical at 90
Li-Ion battery technology
Compact & handy size
Features
360 vertical laser line
200 vertical laser line at 90
360 horizontal line ---- form 5 laser crosses ----
Laser lines switchable separately
Plumbing function
Multi-functional mount with
strong magnets on the base and back
strap attachement
height adjustable
5/8" connection for builders' tripod
Use with receiver (optional)
Self-levelling function can be locked for manual use
5/8" & 1/4" connection at the instruments bottom
Supplied with
Multi-functional mount
Li-ion battery, charger
battery case for alkaline batteries
Magnetic target
Softbag
tripod
Technical data
Self-levelling range 4
Accuracy 2 mm / 10 m
Working range without receiver 20 m* (radius)
Working range with receiver 60 m (radius)
Power supply Li-Ion
Operating time (all lines switched on) 10 h
Dust/waterprotection IP 54
Laser diode / class 635 nm / 2
Temperature range -10C to +45C
Size 13 x 9.5 x 13 cm
Weight (instrument with battery) 1.0 kg
Weight (in bag incl. accessories) 2.0 kg
