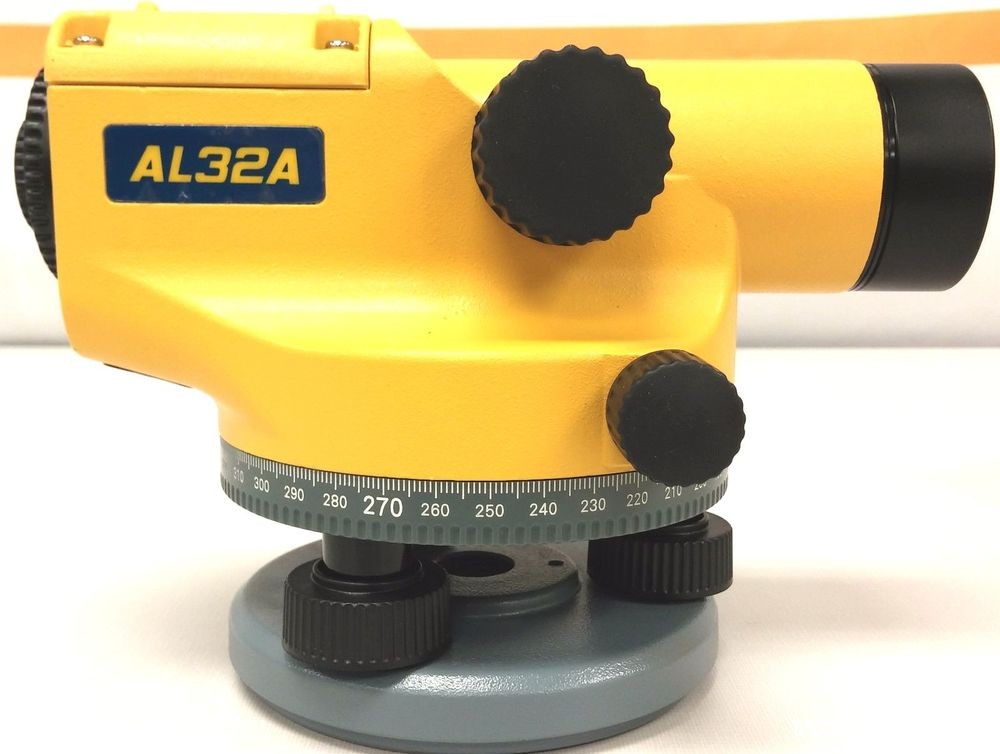

Automatic Level Spectra AL32A
Features Spectra AL32A
• Choice of magnification: 32x
• Choice of magnetic or air-dampened automatic compensators
• Double-sided, continuous horizontal tangent drives
• Stadia lines for simple distance measurement
• Convenient horizontal angle measurement
• Built in bubble mirror and optical sighting alignment
• Metal housing increases durability
• Water resistant construction
Specifications Spectra AL32A
• Magnification: 32x
• Color: Yellow
• Objective Diameter: 36 mm
• Field of View Angle: 1° 20'
• Shortest Focusing Distance: 0.6 m
• Stadia Constant: 100
• Additive Constant: 0
• Compensator Dampening: Air
• Compensator Range: ± 15'
• Compensator Setting Accuracy: < 0.3"
• Double Run Leveling per 1 km: 1 mm
• Circular Vial Accuracy: 8/ 2 mm
• Horizontal Circle: 1°
• Weight: 3.5 lb ( 1.6 kg)
• Base Plate: 5/ 8 x 11
